Working Principle

Strip Oil PressBased on the physical pressing principle of “screw extrusion + strip chamber filtration,” its core structure consists of a spiral shaft and a strip chamber (composed of multiple parallel rectangular strips with fixed narrow gaps between them). During operation, pre-treated oilseed (cleaned of impurities and dried/roasted) enters the chamber from the feed inlet. The high-speed rotation of the spiral shaft propels the oilseed toward the cake outlet. The chamber gradually shrinks, creating a sustained high pressure (up to 25-50 MPa), disrupting the oilseed cell structure and releasing the oil. The pressure forces the released oil to filter through the narrow gaps in the strip chamber (typically 0.05-0.2 mm) and flow out as crude oil. The remaining oilseed residue (cake) is discharged from the cake outlet, completing the “oil-residue separation.” The entire process uses no chemical additives; oil extraction is achieved solely through physical extrusion and mechanical filtration.

Advantages

1. Excellent oil filtration and high crude oil purity
2. Stable pressing pressure and balanced oil yield
3. Durable structure and low maintenance costs
4. Suitable for small and medium-sized batch production with low operating requirements
5. Complete cake and meal shape and high added value

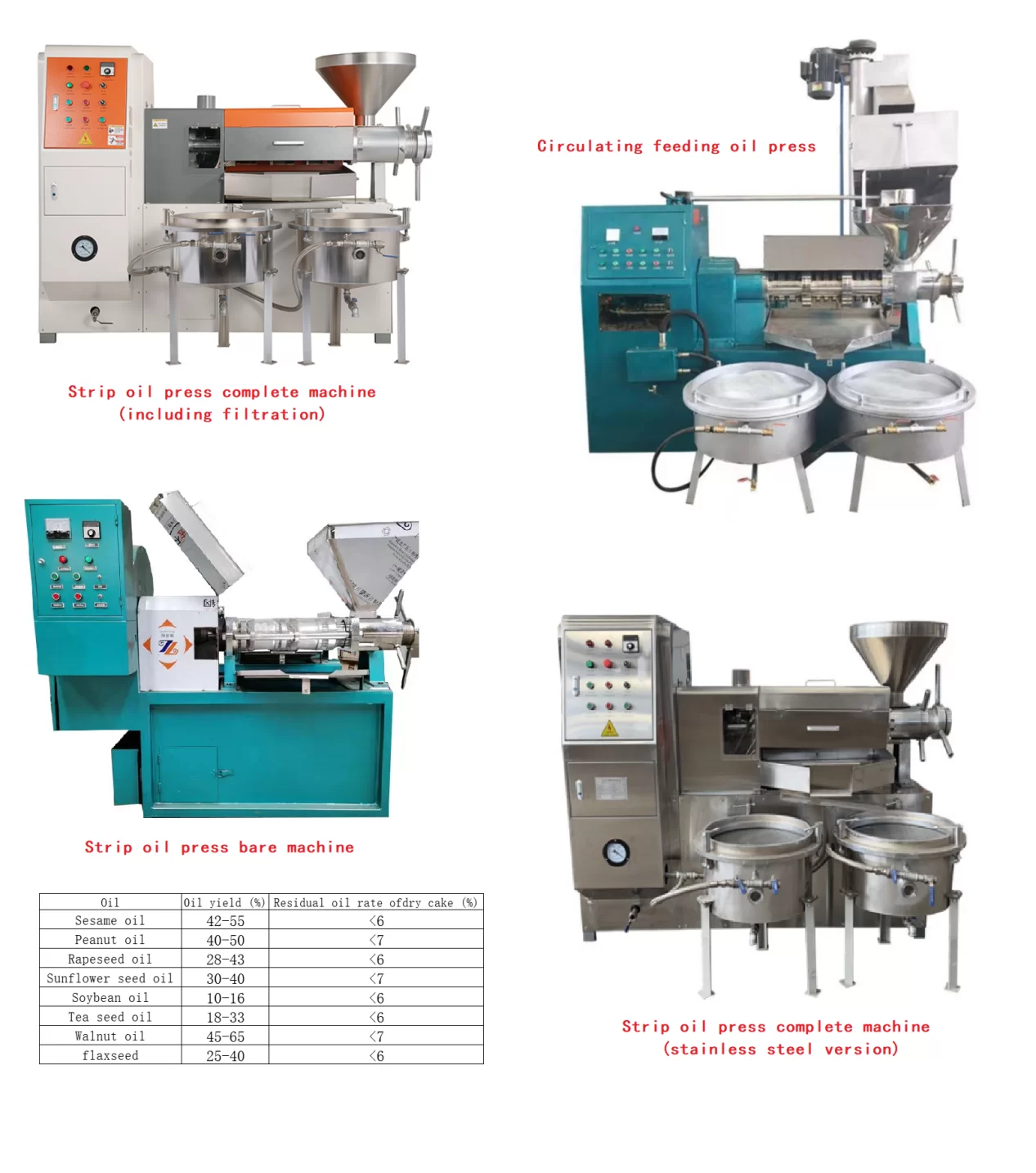

Product Parameters
